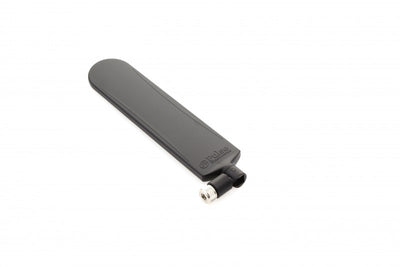

Pulse SPDA24700/2700 4G LTE Antenna Stick SMA Male Connector
The SPDA24700/2700 3G/4G-LTE is a blade-style dipole antenna with right angle knuckle and SMA male connector for 3rd generation, 4th generation, and Long Term Evolution modems cellular modems, access points, routers, and small base station applications. The unit is 9 inches long and provides 2 dBi gain across the full range of frequencies of 698-2700 Mhz.
The SPDA24700/2700 is a 4G swivel blade antenna designed for 3rd generation, 4th generation, and Long Term Evolution modems, access points, routers, and small base station applications. The SPDA24700/2700 covers the LTE frequency ranges of 698-960/1710-2170/2500-2700 MHz providing omnidirectional radiation with a gain of 2 dBi. The blade package is a right-angle swivel provided in black plastic with dimensions of .94” x 7.72” (23.8 mm x 196 mm) in the right angle position. It is supplied with an SMA Male connector.
- 4G Swivel Blade Antenna
- Performance across the LTE frequency bands
- 698-960/1710-2170/2500-2700 MHz
- Up to 2 dBi Gain
- SMA connector
- RoHS Compliant
