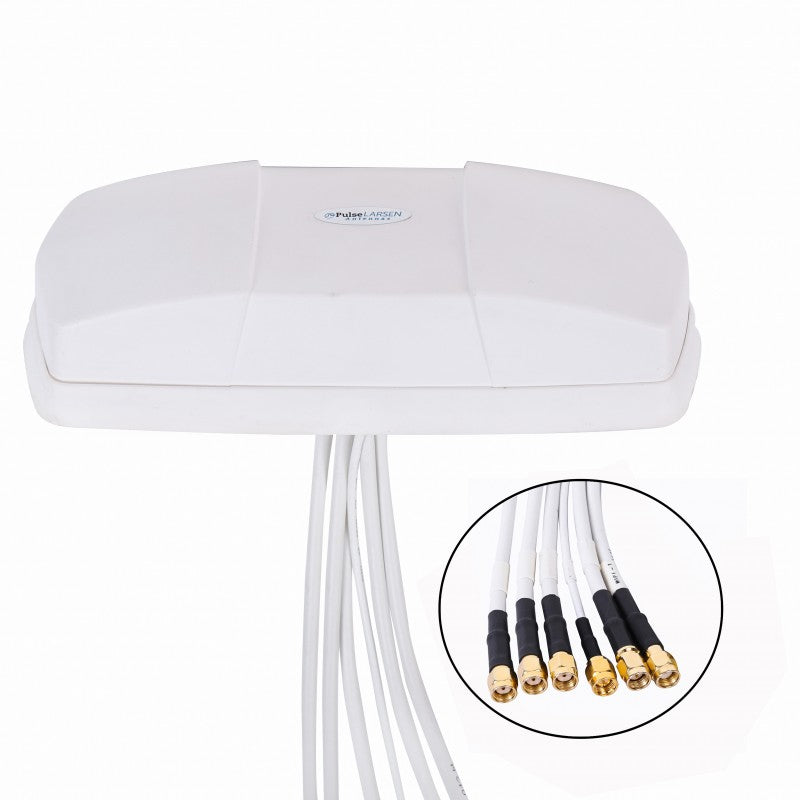

Pulse Larsen ARM62312AM Multiband Armadillo Adhesive Mount Antenna - White, 6 Ports
Pulse Larsen ARM62312AM Multiband Armadillo Adhesive Mount Antenna - White, 6 Ports
Description
Vehicular Antenna: Combo, 6 Ports Multi Antennas
Dimensions: 6.5”(L) x 6”(W) x 3”(H) / 164.5mm(L) x 151.9mm(W) x 76mm(H)
| Attachments | Datasheet |
| Wireless Technology | 4G LTE & WiFi & GNSS (Combo) |
| Antenna Type | 6 Ports Multi Antennas |
| Number of Ports/Feeds | 2x LTE, 3x WiFi, 1x GNSS |
| Mounting | Adhesive (Glass) Mount |
| Cellular Port Frequency (MHz) | 698-960; 1710-2690 |
| Peak Gain Cellular Port (dBi) | 4; 5 |
| Frequency WLAN Port (MHz) | 2400-2500; 5150-5925 |
| Peak Gain WLAN Port (dBi) | 4; 6 |
| Frequency GNSS/GPS Port (MHz) | 1559-1606 |
| Dimensions LxWxH (mm) | 202.3(L) x 88.5(W) x 45(H) |
| Notes | IP67, White, SMA/RP-SMA/SMA |
